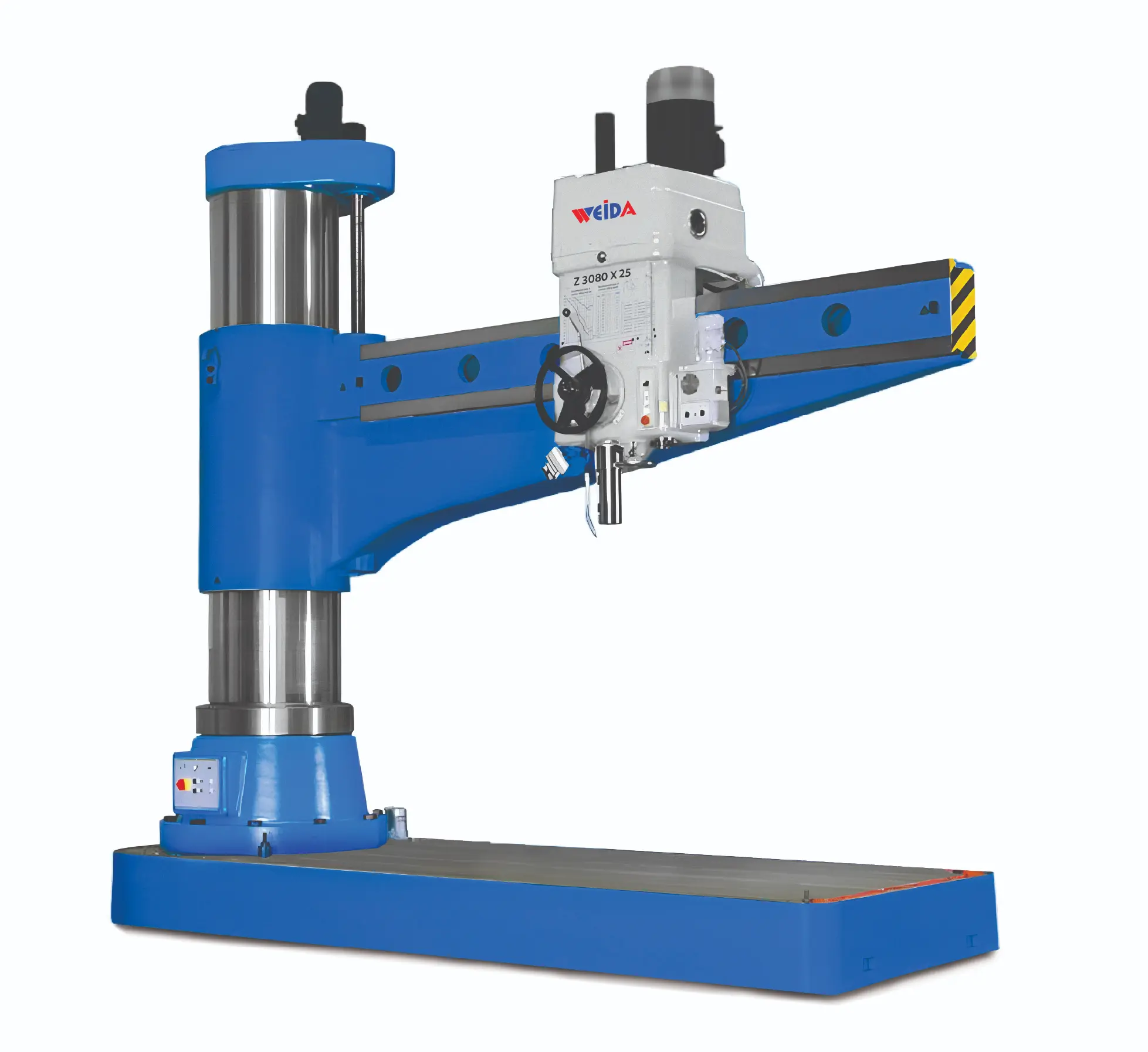

RADIAL DRILL MACHINE Z3080 x 25


WEIDA

Weida is a large-scale joint-stock enterprise with the right to import and export of milling machines , CNC gantry milling machines , universal milling machines , CNC boring and milling machines, etc. It has a milling machine technology development center, an information data processing center, a product supervision and testing center and a measurement room. CAD and ERP are used for new product development and enterprise information management.



MACHINE DESCRIPTION:

Radial Drilling Machine consists of a heavy round vertical column supporting a horizontal arm that carries the drill head. It is used primarily for drilling medium to large and heavy work piece. The machine has wide range application in machinery process such as drilling, tapping even boring if with essential device.

Quick info

SKU: 9672138499-1 Categories: ,
GET A QUOTESpecs pdf download

Description

RADIAL DRILL MACHINE
Model No.Z3080 x 25
Brand NameWEIDA
Max. Drilling Capacity80 mm
Distance between spindle axis and column500-2500 mm
Distance between spindle nose & working surface of base550-2000 mm
Spindle Travel 450 mm
Spindle Taper 6#
Number of Spindle Speed 16 steps
Range of Spindle Speed16-1250 r/min
Range of Spindle feed 0.04-3.2 mm/r
Table Size 800x1000
Distance of Headstock horizontal movement 2000 mm
Spindle Motor Power400 N.m
Max feed Load 7.5 KW
Weight 11000 kg.
Overall dimensions (L x W x H)3730 x 1400 x 4025 mm
